Air Piping System

Your Business’ lifeline

ps_0

Acting as the vascular system of your manufacturingps_1 site, your compressed air sysem plays a vital role in your production processes. Delivering quality air exactly where you need it, at the right pressure and at the lowest possible cost, Atlas Copco’s innovative AIRnet™ compressed air piping system complements your compressed air projects.

It consists of high quality elements only and distinguishes itself through flexibility and ease of requirements. Thanks to its wide range of products, AIRnet is a complete solution from source to production.

 Features

 REDUCED ENERGY COSTS

  • AIRnet significantly reduces your operating costs by providing more air flow with less pressure drop thanks to its smooth inner aluminum surface.
  • AIRnet’s corrosion-free pipes and fittings minimize the risk of leakage and maintain the pressure drop constant over time, reducing energy waste.
  • An integrated drop reduction of 1 bar results in 7% energy savings of your total compressor installed power.
  • The compressor is receiver mounted and pre-piped.

 TIME SAVING

  • AIRnet can be installed easily and quickly by just one person, without requiring any training.
  • An AIRnet system can be built in one-third the time of a conventional one, no specialized tools needed. Network maintenance is equally fast.
  • As all components are easily adjustable and reusable, AIRnet evolves right along with your production setting.
  • AIRnet is compatible with any existing pipework and equipment.
  • To minimize downtime, your installation can be pressurized immediately upon completion.

BUILT TO LAST

The AIRnet piping system is resistant to corrosion, mechanical shocks, fire, thermal variations and outdoor weather conditions. Thanks to consistent clean quality air, the AIRnet range ensures longer longevity of your equipment and increases the lifetime of the filtration elements. In line with the high quality performance of our AIRnet product range, we are granting you with a 10 year guarantee on our AIRnet fittings and aluminum pipes against any damages resulting from material defect.

Benefits

FULLY CUSTOMIZABLE

Fixed to walls or ceilings, AIRnet’s range of fittings lets you custom-build a compressed air system to your specific production needs.

LEAKAGE-FREE

AIRnet fittings are corrosion-free. They ensure a leakage-free installation and eliminate energy waste.

MAXIMUM FLEXIBILITY

Quick drops can be added at any time to create extra drop legs. As the connection is made from the side section, the risk of condensate pollutant is eliminated.

CONSTANT AIR QUALITY

AIRnet delivers constant quality air from point of generation to the various points of use, protecting downstream equipment and manufacturing processes.

FUTURE-MINDED

As all components are easily adjustable and reusable, AIRnet facilitates future network extensions.

ps_2EASY IDENTIFICATION

In compliance with most industrial standards, AIRnet pipes are standard painted blue or green for simple network identification.

LOW PRESSURE DROP

The design with full diameter and inside fin guides eliminates air flow restriction and guarantees the lowest possible pressure drop.

SETTING A NEW STANDARD

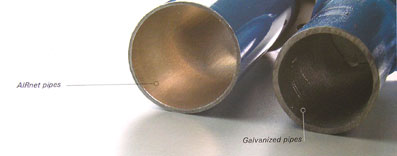

ps_5

 A galvanized steel compressed air system has been the industry standard for many years. With AIRnet, Atlas Copco raises the bar in compressed air piping systems, using only highly durable materials like aluminum and polymer.

AIRnet is suitable for compressed air as well as vacuum and insert gases.

HIGHER COST SAVING POTENTIAL

AIRnet Pipe

  • Smooth surface.
  • Constant, low friction factor, resulting in an unrestricted air flow
  • Low initial pressure drop. (E.g. In a system with an air demand of 110 l/s, designed as a 400m long ring of o50mm (2″) pipes with P=7 bar, the pressure drop (^P) equals 0.2 bar.)
  • Requires lower loading pressure at the compressor and lower power consumption.
  • Standard painted blue (compressed air ) or green (inert gases) for easy network identification.

GALVANIZED PIPE

  • Rough surface.
  • Friction factor is almost double of an aluminum pipe. restricting the air flow. due to corrosion, the friction factor increases over time.
  • High initial pressure drop. (E.g. In a system with an air demand of 110 l/s, designed as a 400m long ring of o50mm (2″) pipes with P=7 bar, the pressure drop (^P) equals 0.37 bar.)
  • Requires higher loading pressure at the compressor and higher power consumption.
  • Pipes need to be painted in the appropriate color, adding to the total cost.

LONGER LIFETIME

AIRnet Pipe

ps_4

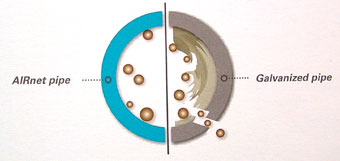

  • AIRnet’s aluminum pipes and polymer fittings do not corrode. Their smooth inner surface keeps air clean, now and in the years to come.
  • No risk of corrosion when cutting the aluminum.
  • Very low risk of leakage, which is not related to corrosion.



 GALVANIZED PIPE

  • Corrosion protection depends on the quality of the galvanization.
  • When the pipe is cut, the galvanization is removed, resulting in a high risk of corrosion.
  • The connection poses a high risk of corrosion at low level points where water can stagnate, resulting in a high risk of leakage.

EASIER INSTALLATION

AIRnet PIPE

  • Lightweight pipes: a standard 050mm (2″) pipe weights less than 5kg (11ibs).
  • Short manual cutting time.
  • Fast dedurring of the pipe. Pipes can be simply pushed into the fitting.
  • In addition to offering a single assembly method for all fittings, the fitting can be tightened by hand and secured with a spanner.
  • Modifying the network is easy and fast: the fittings and pipes can be simply disassembled and refused.

GALVANIZED PIPE

  • Heavy pipes: a standard 050mm (2″) pipe weights more than 25 kg (55ibs).
  • Very long manual cutting time. Requires an electrical cutter which may generate some metallic dust, polluting the air.
  • Threading the pipe requires a certain level of experience to avoid future leakage.
  • The galvanized fittings need to be tightened using sealing material. The risk of leakage depends on the quality of the thread.
  • Modifying the network is difficult and time-consuming; the pipes have to be cut, changed, threaded and reassembled.

ps_3

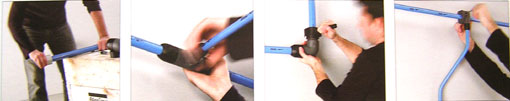

SIMPLE INSTALLATION

Lightweight yet robust, AIRnet installs easily and fast. Its large range of fittings, sockets, brackets and accessories accommodates any possible network geometry. Quickly adjustable and fully reusable, AIRnet evolves right along with your production setting.

THE FLEXIBLE FIT

ps_6

AIRnet effortlessly adapts to the changing demands of your network.

Connection to your applications can be easily and manually dismantled and reassembled to connect to new or modified production process.

Quick drop fittings can be added at any time to create extra drop fittings can be added at any time to create extra drop legs. Furthermore, AIRnet is also compatible with any exciting pipe work and equipment.

REDUCED INSTALLATION TIME

AIRnet has been designed with a unique assembly system, allowing an AIRnet system to be built in one-third the time of a conventional one. Assembling a pipe, from cutting to securing the pipe into the fitting, takes only 2 minutes for fittings of smaller diameters (<o50 mm, 2″), and only 4 minutes for larger fittings. Pipes up to o25 mm (1″) can even be tightened by hand, with instant air tightness. As the system can be pressurized immediately after assembly, you will not waste not waste valuable time.

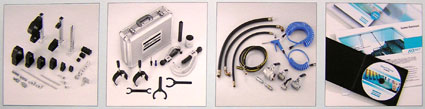

AIRnet ACCESSORIES

  • Hanging Brackets
  • Tools
  • Connectors
  • Air Guns
  • Couplers
  • Hoses / Rubber Hoses / Flexible Hoses
  • AIRnet Planner 3D Software

IMMEDIATELY AIRTIGHT

Atlas Copco engineered and manufactured AIRnet to eliminate leakage. While the unique O-ring ensures an airtight fit, the longer push distance facilities achieving perfect alignment for high resistance to vibration. The clinch ring grips the pipe, keeping the fitting firmly in place and securing the installation at maximum working pressure.

ps_7a
